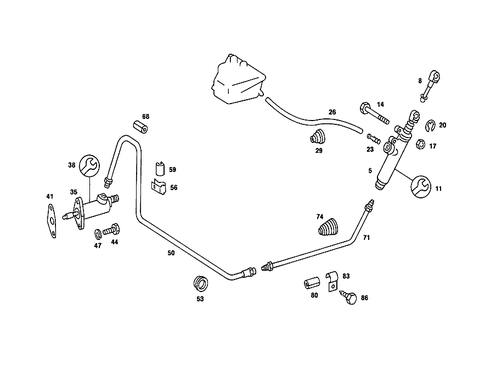

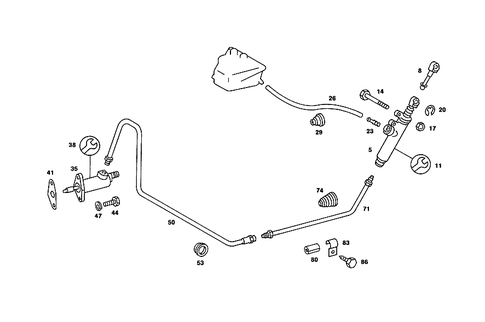

Pedal Assembly Hydraulics for 1986 Mercedes-Benz 190D
No.
Part # / Description / Price
Price
11
Repair Kit
Mercedes-Benz
Mercedes-Benz Notes: IS NO LONGER DELIVERED, ORDER DELIVERY CONTENTS
Description: Master cylinder.
14
Screw Mercedes-Benz
Mercedes-Benz Description: CLUTCH MASTER CYLINDER TO PEDAL BEARING BRACKETDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. BRACKET TO ALTERNATOR SUPPORTDiameter: 6mmStrength / hardness class: 8.8Thread code letter: MThread pitch: 1mm. STEERING LOCK ...
MSRP $8.50
$6.35
MSRP $8.50
$6.35
17
Hexagon Nut Mercedes-Benz
Mercedes-Benz Description: Steering column jacket tube to body. Master cylinder to pedal assembly. Brake power regulator to bracket. Bracket to engine. Cable to ignition coil. Fuel lines under rear seat. Hydraulic unit to bracket. Wiper motor to fire wall.
MSRP $12.50
$9.40
MSRP $12.50
$9.40
20
MSRP $1.50
$1.14
20
Retaining Ring Mercedes-Benz
Mercedes-Benz Description: PISTON ROD TO CLUTCH PEDAL TO 201 290 13 16
Inside diameter: 8mm
Material thickness: 0,8mm.
Inside diameter: 8mm
Material thickness: 0,8mm.
23
MSRP $9.00
$6.86
26
Hose Mercedes-Benz
Mercedes-Benz Description: From reservoir to master cylinder. Reservoir,clutch master cylinder, clutch slave cylinder.
MSRP $11.00
$8.38
MSRP $11.00
$8.38
29
Sealing Boot Mercedes-Benz
Mercedes-Benz Description: Pipe line thru fire wall. In firewall, for refilling hose. In firewall, for subsequent filling hose. Pipeline. Piping.
35
Slave Cylinder Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 092104 F 017551
35
Slave Cylinder Mercedes-Benz
Mercedes-Benz Notes: FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.
A 092104 F 017551
35
Slave Cylinder Mercedes-Benz
Mercedes-Benz Description: Used with five-speed transmission teves.
MSRP $85.00
$62.22
MSRP $85.00
$62.22
38
Repair Kit, Cl Slave Cylinder Mercedes-Benz
Mercedes-Benz Description: Slave cylinder to 0002958207. Kugelfischer,to 0002956307/8207. Slave cylinder to 000 295 82 07,201 290 03 11.
41
Flange Seal Mercedes-Benz
Mercedes-Benz Description: Slave cylinder to transmission case. Slave cylinder to bell housing.
44
Hexagon Head Bolt Mercedes-Benz
Mercedes-Benz Description: Shackle mounting. M8X30
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. At support. Instrument panel to left / right A-pillar and wind deflector M 8X30. Seat framework to backrest. Child's seat mounting. Child seat safety catch. Left and right outer guard plate to rear panel. Rear m8x30. Crossmember to a-pillar.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. At support. Instrument panel to left / right A-pillar and wind deflector M 8X30. Seat framework to backrest. Child's seat mounting. Child seat safety catch. Left and right outer guard plate to rear panel. Rear m8x30. Crossmember to a-pillar.
MSRP $2.40
$1.78
MSRP $2.40
$1.78
50
Piping Mercedes-Benz
Mercedes-Benz Description: From hydraulic line to clutch slave cylinder. From clutch hose to slave cylinder used with five-speed transmission. From clutch master cylinder to slave cylinder. Used with 5-speed transmission.
MSRP $72.00
$52.89
MSRP $72.00
$52.89
50
Piping Mercedes-Benz
Mercedes-Benz Description: Clutch line. From clutch master cylinder to clutch slave cylinder. From clutch hose to slave cylinder used with five-speed transmission.
56
Holder Mercedes-Benz
Mercedes-Benz Description: Pipe line to transmission case. Pipe line to bell housing. Used with five-speed transmission.
59
Bushing Mercedes-Benz
Mercedes-Benz Description: Pipe line to transmission case. Separation point at clutch slave cylinder. Pedal assembly hydraulics. Mounting, clutch line (separation point to slave cylinder). Pipe line to bell housing used with five-speed transmission.
71
Line Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: From clutch master cylinder to clutch slave cylinder. From master cylinder to hydraulic line. Hydraulics unit connection "hz2" to master cylinder. Hydraulic unit to master brake cylinder. Hydraulics unit connection "hz1" to master cylinder.
74
Boot Mercedes-Benz
Mercedes-Benz Description: Flexible shaft thru fire wall. Declutching-start/back-up-light switch used with asr. Windshield wiper motor connection. In firewall, for clutch line. Electric cable thru tunnel.
83
Clamp Mercedes-Benz
Mercedes-Benz Description: Pipe line to fire wall. Pipe line to unit partition panel. Vacuum line to side member. Pipe line mounting.
86
Tapping Screw Mercedes-Benz
Mercedes-Benz Description: Instrument panel to cross member,top. 4,8x25
diameter: 4,8mm
thread code letter: r.
diameter: 4,8mm
thread code letter: r.
MSRP $6.75
$5.08
MSRP $6.75
$5.08
No.
Part # / Description / Price
Price
53
MSRP $7.00
$5.33
