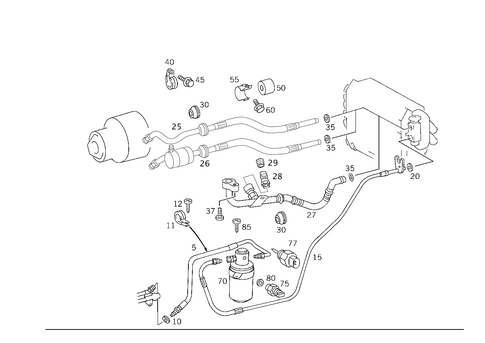

Refrigerant Line Arrangement for 1999 Mercedes-Benz C280
No.
Part # / Description / Price
Price
10
Sealing Ring
Mercedes-Benz
Mercedes-Benz Description: Heater. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. HEATING. 7.5X2.0Strength / hardness class: EPDMInside diameter: 7,5mmOutside diameter: 11,5mmMaterial thickness: 2mm. MOUNTING PLATE TO DRI ...
MSRP $3.70
$2.79
MSRP $3.70
$2.79
27
Piping Mercedes-Benz
Mercedes-Benz Description: (suction line),from expansion valve to separation point.
MSRP $565.00
$388.70
MSRP $565.00
$388.70
28
Valve Mercedes-Benz
Mercedes-Benz Description: Test connection. De-aeration valve. Filling valve. In suction line.
MSRP $29.50
$22.23
MSRP $29.50
$22.23
35
MSRP $4.30
$3.28
37
MSRP $3.00
$2.29
37
Cap Screw Mercedes-Benz
Mercedes-Benz Description: M8X30-10.9
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Steering coupling to steering shaft. Line to compressor. Stop buffer to frame. Plug connection, separation point.
Diameter: 8mm
Strength / hardness class: 10.9
Thread code letter: M
Thread pitch: 1mm. Steering coupling to steering shaft. Line to compressor. Stop buffer to frame. Plug connection, separation point.
MSRP $6.00
$4.45
MSRP $6.00
$4.45
40
Clamp Mercedes-Benz
Mercedes-Benz Description: Tube to rear pillar. Hose to right rear pillar. Main cable harness to fire wall.
75
MSRP $199.00
$139.23
77
Temperature Sensor Mercedes-Benz
Mercedes-Benz Description: At liquid tank,for additional blower. Outdoor temperature sensor.
80
Sealing Ring Mercedes-Benz
Mercedes-Benz Description: Pressure switch to liquid tank used for additional blower. 9.0 x 1.8 mm. Pressure switch to liquid tank used for compressor. 9.0 x 1.8 mm. At liquid tank. 9.0 x 1.8 mm. Refrigerant reservoir valve. 9.0 X 1.8 MM. Sensor. 9.0 x 1.8 mm.
85
Hexagon Head Screw Mercedes-Benz
Mercedes-Benz Description: M5x10.5. At blower;temperature sensor ventilation. Bracket to fire wall. Heat shield mounting. Control unit. Screening plates. Main floor,front right. Return line to partition panel.
MSRP $0.70
$0.51
MSRP $0.70
$0.51
110
Discharge Line Valve Mercedes-Benz
Mercedes-Benz Description: Condenser. To 140 830 05 70. To 129 830 02 70,129 830 04 70. Filling valve. In pressure line.
MSRP $22.50
$17.13
MSRP $22.50
$17.13
125
MSRP $3.40
$2.54
135
MSRP $0.90
$0.64
140
Nut Mercedes-Benz
Mercedes-Benz Description: Blower to cooling module. Condenser and blower to radiator.
MSRP $4.90
$3.68
MSRP $4.90
$3.68
145
Seal Mercedes-Benz
Mercedes-Benz Notes: TO BE ADAPTED DURING ASSEMBLY
Description: Between condenser and radiator,top 112 mm. Between condenser and radiator,top 350 mm.
175
Hexalobular Screw Mercedes-Benz
Mercedes-Benz Description: Tube to bottom frame. Sliding angle to sliding roof plate. At lifting bow. At transport bridge. Locking clamp to rear end central part. Handle to rear lid.
MSRP $5.50
$4.06
MSRP $5.50
$4.06
185
Intermediate Layer Mercedes-Benz
Mercedes-Benz Description: Additional blower to condenser. Condenser to radiator.
MSRP $19.50
$14.61
MSRP $19.50
$14.61
210
